Service Network Redirections

Once a domain has been linked to your Haddock instance, you can expose service ports publicly by creating redirections to a custom domain or subdomain.

This is done from the Networks tab in the service details panel.

Accessing the Redirection Panel#

1. Go to your project dashboard
2. Click on your project
3. In the Topology tab (default), click on a service node
4. A side drawer opens — go to the Networks tab
5. Scroll to the Redirections section
6. Click “Add redirection”

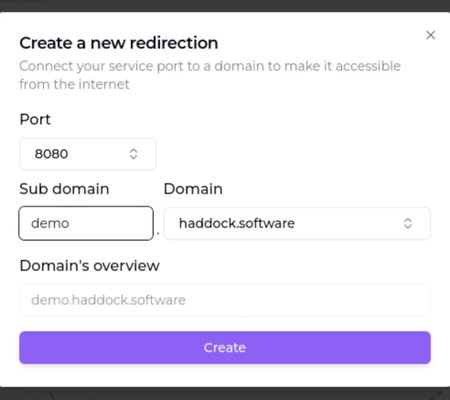

Creating a Redirection#

You will need to fill in the following fields:

• Port: Choose from the ports exposed by the service

If you don’t see the port, you need to expose it in your compose.yml file.

• Subdomain (optional): A label like api, dashboard, dev…
• Domain: Choose from one of the verified domains linked to Haddock

You will see a live preview of the complete URL (e.g., demo.haddock.software).

❗ Restrictions#

• You cannot redirect traffic to your primary domain (e.g., haddock.com) because it is reserved for the platform itself.
• Only verified domains added to your instance will be available.

Redirect with a Subdomain#

For example, to expose port 8080 of a service to the URL fastapi.haddock.software:

1. Select port: 8080
2. Subdomain: fastapi
3. Domain: haddock.software
4. Click Create

The service will now be accessible from:
👉 https://fastapi.haddock.software

Redirect without Subdomain#

You may also leave the subdomain blank to expose on the root domain (e.g., projectname.custom-domain.com), as long as:

• The domain is not the primary domain
• You have at least two domains configured

Example:

• Port: 3000
• Subdomain: (empty)
• Domain: clientdomain.com
  → Result: https://clientdomain.com

If the primary domain is selected, a warning will appear and the redirection won’t be created.

Viewing and Deleting Redirections#

All active redirections are listed under the Redirections section in the service drawer.

Each entry shows:

• Port
• Domain
• Full redirected URL
• A trash icon to delete the redirection

To remove a redirection:

1. Click the trash icon
2. Confirm deletion in the dialog

A success message will confirm removal, and the URL will become unreachable.

Domain and Network Display#

Above the redirection section, the Networks tab also displays:

• Open ports (from Compose)
• Network names the container is attached to

This allows full visibility into the network layout of the service.

✅ Summary#

You can now safely expose any service through your own custom URL.
